X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter

Name: X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter
Brand: Dongguan Chenglue Electronic co.,Ltd
SKU: 0.47uf/275V P10mm
Price: 44.05 USD
Availability: InStock

Tutti i prodotti

Condensatore di sicurezza X2
(99)

Condensatore di sicurezza Y1
(55)

Condensatore di sicurezza Y2
(27)

Condensatore metallizzato del film del polipropilene
(67)

condensatore eccellente
(53)

Condensatore metallizzato del film di poliestere
(10)

Condensatore MMKP82
(37)

condensatore elettrolitico di alluminio
(38)

Varistore di ossido di metallo
(99)

Varistore dei MOVIMENTI di SMD
(31)

Resistenza termica NTC
(80)

Sensore di temperatura NTC
(32)

Sensore di corrente ad effetto Hall
(17)

Fusibile del veicolo elettrico
(29)

Lampada a scarica
(42)

FUSIBILE ad alta tensione
(88)

Fusibili termici in ceramica
(14)

Fusibile automatico della lama
(11)

Tenitore di fusibile montato su PCB
(11)

Interruttori di disconnessione master
(6)

Condensatore elettrolitico al solido di alluminio
(28)

Sono ora online in chat

X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter

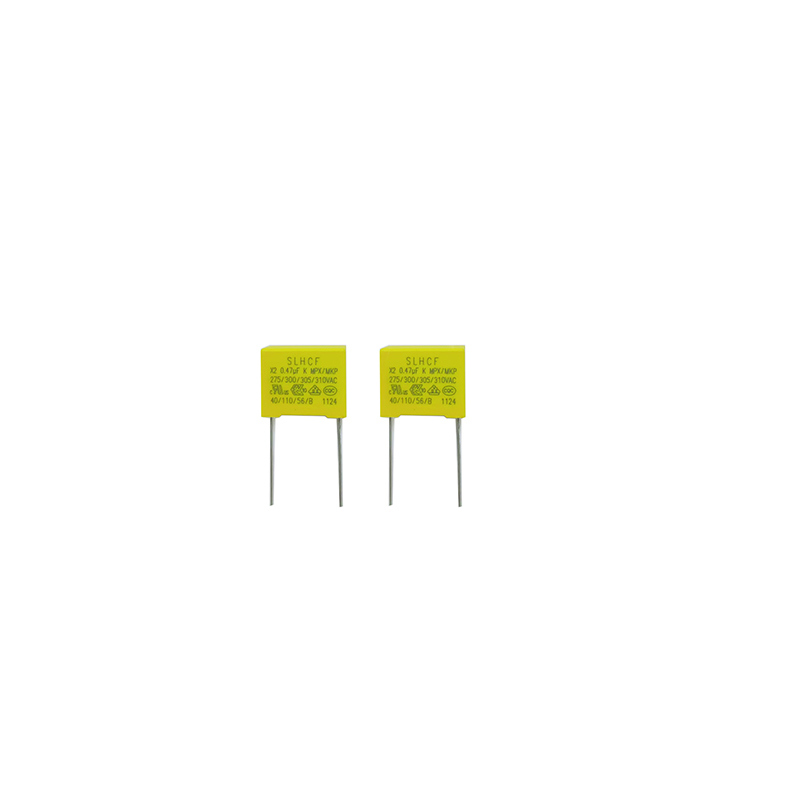

Grande immagine : X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter

Dettagli:

Place of Origin:	CHINA
Marca:	SLFCF
Certificazione:	VDE，CQC UL
Numero di modello:	0.47uf/275V P10mm

Contatto

X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter

descrizione

Gamma di capacità:	0.001uF - 4.7uF	Tolleranza di capacità:	± 20%
Resistenza all'isolamento:	≥ 10.000 MΩ	Materiale del filo di piombo:	Rame in scatola
Tipo di pacchetto:	Radiale	Tipo di montaggio:	foro
Tensione nominale:	310vac	Nome del prodotto:	X2 condensatore di sicurezza
Evidenziare:	X2 safety capacitor 0.47UF 275V , X2 capacitor for inverters adapters , P10MM X2 safety capacitor

X2 Safety Capacitor 0.47UF/275V P10MM,Applied to inverters; Adapter

Product Description

The X2 Safety Capacitor is an essential component in electrical circuits, providing reliable safety protection against electrical shocks and interference. Manufactured by the leading X2 Safety Capacitor factory, this capacitor is designed to meet the highest industry standards for performance and durability.

With a rated voltage of 310VAC, the X2 Safety Capacitor is suitable for a wide range of applications, ensuring stable operation under varying electrical conditions. The lead wire material, tinned copper, enhances the conductivity and reliability of the capacitor, making it a dependable choice for demanding environments.

Operating at a rated frequency of 50/60Hz, the X2 Safety Capacitor offers consistent performance across different power systems, providing effective filtering and interference suppression. The capacitance range of 0.001uF to 4.7uF allows for versatile use in various circuit configurations, catering to different voltage and power requirements.

Features

Product Name: X2 Safety Capacitor
Mounting Type: Through-Hole
Size: P10 15 22.5 7.5MM
Lead Wire Material: Tinned Copper
Operating Temperature Range: -40°C To +85°C

Technical Parameters

Parameter	Value
Capacitance Tolerance	±20%
Capacitance Range	0.001uF - 4.7uF
Rated Voltage	310VAC
Rated Surge Voltage	2.5 Times Of Rated Voltage
Lead Wire Length	15mm
Dissipation Factor	≤ 0.1%
Insulation Resistance	≥ 10,000MΩ

Applications

The X2 Safety Protection Capacitor is a versatile component suitable for a wide range of applications due to its unique attributes. With a compact size of P10 15 22.5 7.5MM, this X2 Protective Capacitor is ideal for use in various electronic devices and equipment where space is limited.

The capacitance tolerance of ±20% ensures reliable performance and stability in different operating conditions, making it a dependable choice for critical safety applications. The lead wire material, tinned copper, offers excellent conductivity and durability, further enhancing the reliability of this X2 Safety Device Capacitor.

Customization

X2 Safety Capacitor factory SLFCF offers product customization services for their X2 Safety Capacitor product. The capacitors are designed and manufactured in CHINA, ensuring high quality and reliability. The capacitors have a rated surge voltage of 2.5 times the rated voltage, providing excellent safety features.

Support and Services

The X2 Safety Capacitor product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with product selection, installation guidance, troubleshooting, and any other technical inquiries you may have.

Packing and Shipping

Product Name: X2 Safety Capacitor

Package Contents: - 1 X2 Safety Capacitor - Instruction Manual

Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days

FAQ

Q: What is the brand of the X2 Safety Capacitor?

A: The brand of the X2 Safety Capacitor is SLFCF.

Q: Where is the X2 Safety Capacitor manufactured?

A: The X2 Safety Capacitor is manufactured in China.

Q: What is the voltage rating of the X2 Safety Capacitor?

A: The X2 Safety Capacitor typically has a voltage rating of 250VAC.

Q: Is the X2 Safety Capacitor suitable for use in household appliances?

A: Yes, the X2 Safety Capacitor is commonly used in household appliances for electromagnetic interference suppression.

Q: Can the X2 Safety Capacitor be used for both X and Y class applications?

A: Yes, the X2 Safety Capacitor is suitable for both X and Y class applications, providing safety and reliability.
