X2 Safety Capacitor0.68UF/275V P15MM,Applied to electrical applications

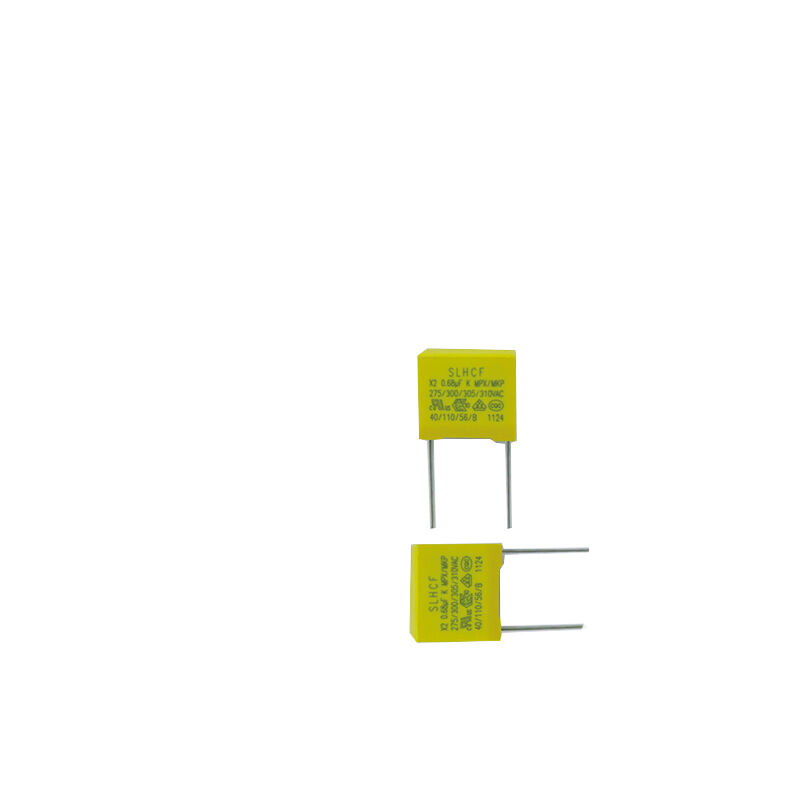

Grande immagine : X2 Safety Capacitor0.68UF/275V P15MM,Applied to electrical applications

Dettagli:

Place of Origin:	CHINA
Marca:	SLFCF
Certificazione:	VDE，CQC UL
Numero di modello:	0,68 UF/275 V P15 MM

Contatto

X2 Safety Capacitor0.68UF/275V P15MM,Applied to electrical applications

descrizione

Sovratensione stimata:	2.5 Tempo di tensione nominale	Lunghezza del filo di piombo:	15 mm
Frequenza nominale:	50/60Hz	Gamma di capacità:	0.001uF - 4.7uF
Tipo di pacchetto:	Radiale	Resistenza di isolamento:	≥ 10.000 MΩ
Tensione nominale:	310vac	Intervallo di temperatura operativa:	Da -40°C a +85°C
Evidenziare:	X2 safety capacitor 0.68UF 275V , X2 capacitor for electrical applications , P15MM X2 safety capacitor

X2 Safety Capacitor 0.68UF/275V P15MM

Applied to electrical applications

Product Overview

The X2 Safety Capacitor is a high-quality component designed for use in various electrical and electronic applications where safety and reliability are paramount. Manufactured by a trusted X2 Safety Capacitor factory, this capacitor is specifically engineered to meet stringent safety standards, making it an ideal choice for AC line filtering, noise suppression, and surge protection circuits.

With a wide operating temperature range from -40°C to +85°C, this capacitor performs consistently and reliably even in demanding environments. The robust construction with tinned copper lead wires ensures excellent conductivity and corrosion resistance, facilitating easy soldering and secure electrical connections.

Key Features

Product Name: X2 Safety Capacitor
Lead Wire Material: Tinned Copper for excellent conductivity and durability
Size Options: P10, 15, 22.5, 7.5MM to fit various design requirements
Dissipation Factor: ≤ 0.1% ensuring high efficiency and low energy loss
Capacitance Range: 0.001uF - 4.7uF suitable for diverse applications
Mounting Type: Through-Hole for secure and reliable installation
Designed as an X2 Safety Protection Capacitor, meeting stringent safety standards
Manufactured by a trusted X2 Safety Capacitor factory ensuring quality and reliability

Technical Specifications

Parameter	Specification
Product Name	X2 Safety Capacitor
Mounting Type	Through-Hole
Capacitance Tolerance	±20%
Capacitance Range	0.001uF - 4.7uF
Lead Wire Material	Tinned Copper
Operating Temperature Range	-40°C To +85°C
Rated Surge Voltage	2.5 Times Of Rated Voltage
Lead Wire Length	15mm
Insulation Resistance	≥ 10,000MΩ
Package Type	Radial

Applications

The X2 Safety Capacitor is specifically designed to meet rigorous demands of electrical safety and reliability in various applications. It plays a crucial role in filtering and suppressing electromagnetic interference (EMI) in AC power lines, ensuring protection of sensitive electronic equipment and enhancing overall system stability.

Common applications include household appliances, industrial machinery, consumer electronics, power supply filters in lighting systems, motor controllers, HVAC equipment, power adapters, surge protection devices, and EMI filters within industrial control systems and medical devices.

Customization Options

SLFCF offers customized X2 Safety Protection Capacitors designed to meet specific requirements. Available in sizes P10, 15, 22.5, and 7.5MM, these capacitors provide excellent performance with a dielectric strength of 1600VAC. Each capacitor features a radial package type with tinned copper lead wires for enhanced conductivity and durability.

Support & Services

We provide comprehensive technical support including product selection guidance, application advice, and troubleshooting. Our team of experts is available to help optimize performance and reliability of systems using X2 Safety Capacitors.

Services include detailed datasheets, application notes, certification documents, custom testing, and qualification services tailored to specific requirements. We support warranty claims and product replacements in accordance with our terms and conditions.

Packaging & Shipping

The X2 Safety Capacitor is securely packaged in anti-static, moisture-resistant materials. Each capacitor is individually sealed in a protective blister pack and placed in sturdy cardboard boxes with cushioning inserts. Shipping is via reliable carriers with tracking options available, including ground and air transport with expedited services upon request.

Frequently Asked Questions

What is the brand name of the X2 Safety Capacitor?

The X2 Safety Capacitor is manufactured under the brand name SLFCF.

Where is the X2 Safety Capacitor produced?

The X2 Safety Capacitor is made in China.

What applications are suitable for the X2 Safety Capacitor?

The X2 Safety Capacitor is commonly used in interference suppression for power supplies, motor controls, and other AC line filtering applications.

What safety standards does the X2 Safety Capacitor comply with?

The X2 Safety Capacitor meets international safety standards for X2 class capacitors, ensuring reliable performance in AC line applications.

What are the typical electrical specifications of the X2 Safety Capacitor?

The X2 Safety Capacitor typically features a capacitance range suitable for line filtering, with voltage ratings around 275VAC, designed to handle surges and spikes safely.
